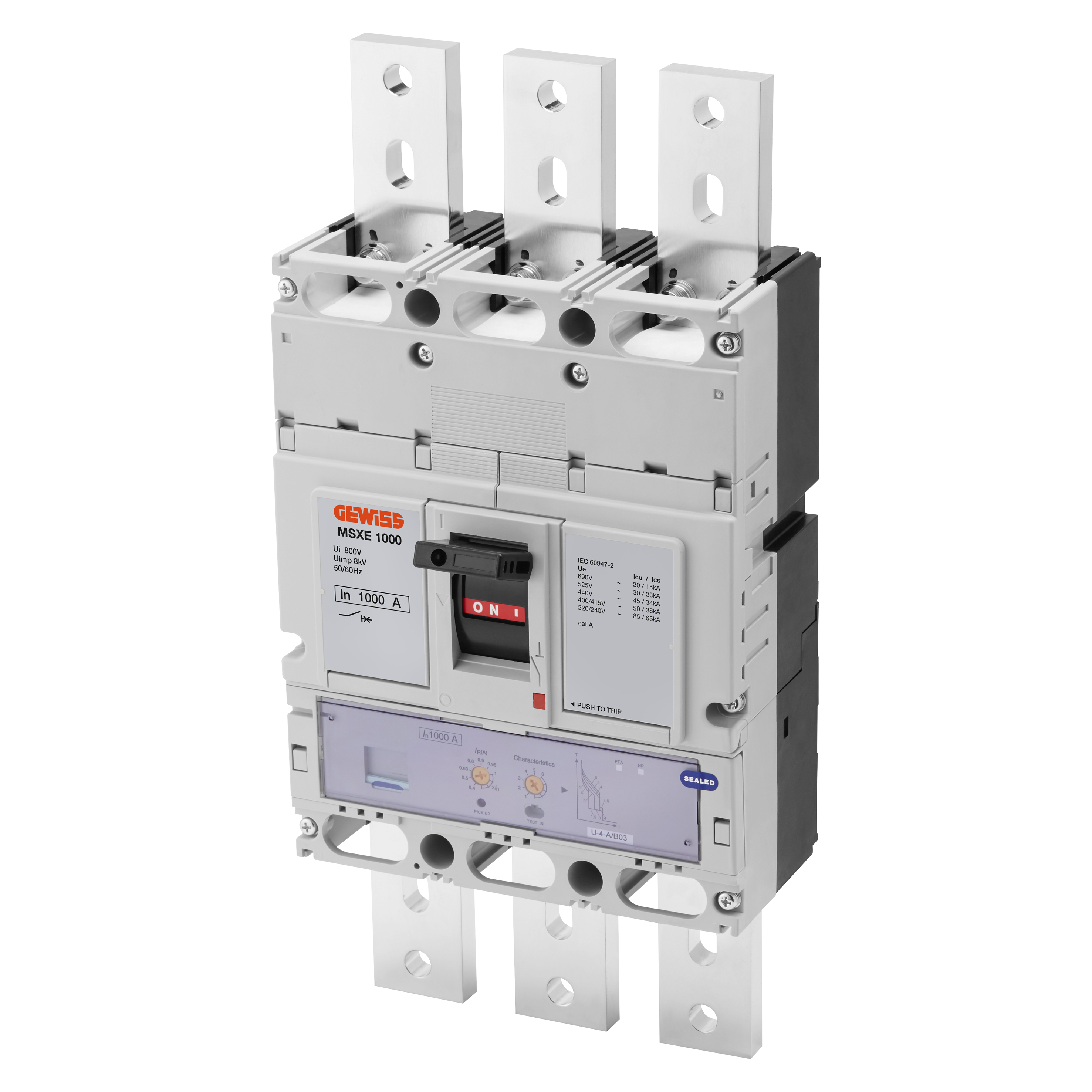

MSXE 1000 - MCCB WITH ELECTRONIC RELEASE - LSI - 50kA 3P 1000A 690V

Code: GWD9406

Range: MSX
Moulded case circuit breaker for power distribution

The moulded case circuit breakers MSX range is made up of circuit breakers with thermo-magnetic release, circuit breakers with thermo-magnetic release and Overcurrent Protection, circuit breakers with electronic release and switch disconnectors.

Technical Info

Information

Download

Software

Certificates

Description Interruttore automatico scatolato

Code MSXE 1000

No. of poles 3P

Rated current 1000 A

Release Electronic

ELECTRICAL CHARACTERISTICS -

MECHANICAL CHARACTERISTICS -

Standard IEC/EN 60947-2

Execution Fixed

Use category A

DIN rail mounting No

Rated frequency (Hz) 50 / 60

Can be equipped with motor operator Yes

Rated operating voltage (Ue) 690 Vac

Compatible interlock Lever – Cable

Rated impulse withstand voltage (Uimp) 8 kV

Terminals supplied Front FB Extended

Overvoltage category IV

Assembly position Any

Insulation voltage (Ui) 800 V

Upline/downline power supply Yes

Thermal regulation 0,4 - 0,5 - 0,63 - 0,8 - 0,9 - 0,95 - 1 x In

Electrical life (415Vac) 4.000 cycles

Magnetic regulation Electronic LSI

Mechanical life 10.000 cycles

Neutral protection -

Operating temperature -5°C +65°C

Total power loss 186 W

Stocking temperature -20° +65°

Rated short-circuit current making capacity (Icm) -

Weight (kg) 11

Rated short-time withstand current for 0,3s (Icw) -

Width 210 mm

Idn regulation -

Height 273 mm

DT regulation -

Depth 103 mm

SERVICE BREAKING CAPACITY (ICU) -

RATED BREAKING CAPACITIY (ICS) -

220/240Vac 85 kA

400/415Vac 50 kA

440Vac 50 kA

525Vac 30 kA

690Vac 20 kA

250Vdc -

Ware Number 85362010

Product Data Sheet

Technical characteristics - IT

Technical characteristics - EN

Brochure - EN

Brochure - IT

Technical characteristics - ES

Information and general recommendations

User guide

Go to download area Go to download area

PRICE

Estimation of electrical systems

PROJEX

Low voltage system design

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

PBT-Q

Low voltage systems and boards

CADpro

Advanced design of electrical systems

Go to software area Go to software area

CE marking

EQUIPMENT AND NOTES

ACCESSORIES SUPPLIED: supplied with front terminals (FC) for 800A versions. Supplied with extended front terminals (FB) for 1000A versions. Operating lever extension for manual closing and opening operations.
CHARACTERISTICS: current regulation field Ir = 0.4 ÷ 1 x In.
Neutral 100% or 50% protected for 4P circuit breaker.
