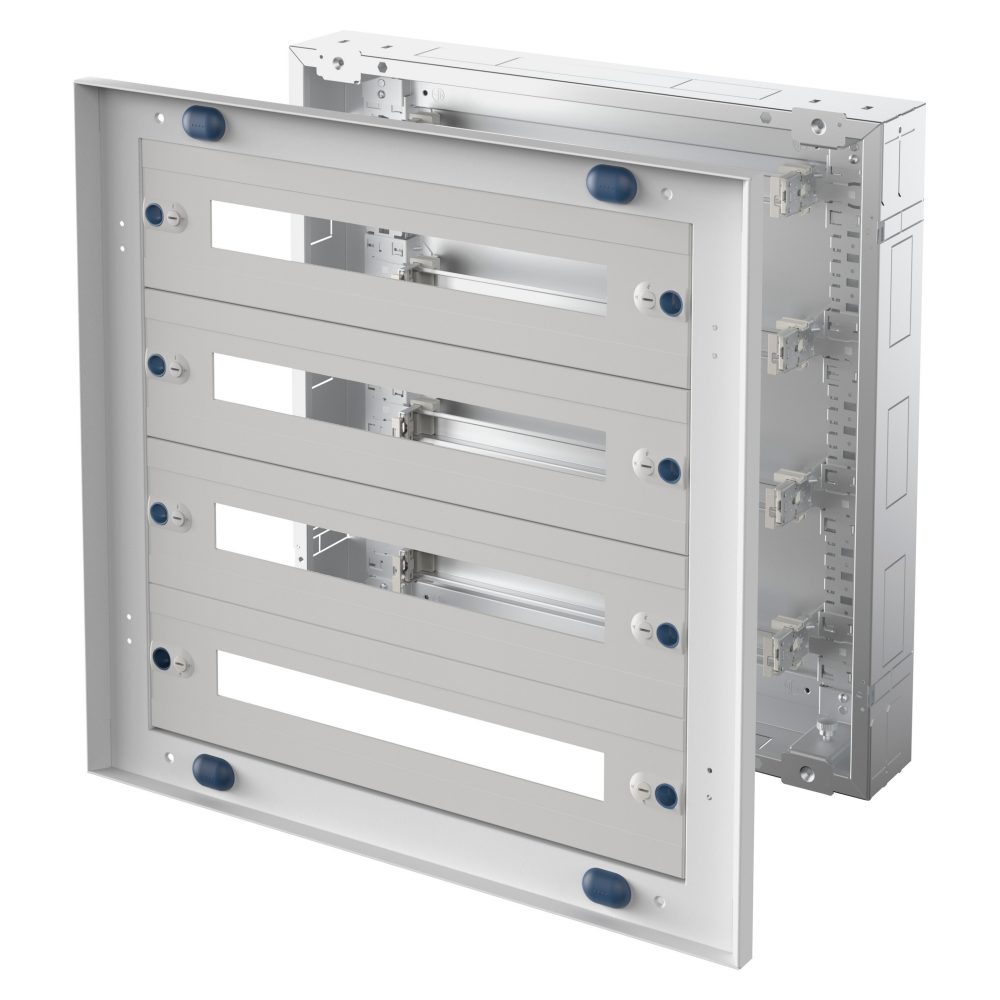

CVX DISTRIBUTION BOARD 160I - FLUSH-MOUNTING - 600x600x105- 96(24x4) MODULES - IP30 - WITHOUT DOOR - GREY RAL7035

Code: GW47072

Range: 47 CVX 160 I Range
Flush-mounting distribution boards up to 160 A

The CVX 160 I range of pre-assembled flush-mounting distribution boards up to 160A allows configurations to be made to suit your needs, from a minimum capacity of 96 modules up to a maximum of 144, with three different heights from 600 mm to 1000 mm.

Technical Info

Information

Download

Software

Certificates

Functional dim. LxHxD (mm) 600x600x105

Box dimensions BxHxD (mm) 680x670x105

Outer dim. LxHxD (mm) 730x706x25

No. of modules EN 50022 96 (24x4)

Ware Number 85381000

DXF drawing

Technical characteristics - EN

Technical characteristics - IT

Technical characteristics - DE

Technical characteristics - ES

User guide

Go to download area Go to download area

PRICE

Estimation of electrical systems

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

PBT-Q

Low voltage systems and boards

CADpro

Advanced design of electrical systems

PROJEX

Low voltage system design

Go to software area Go to software area

Reach Declaration

CE marking

EQUIPMENT AND NOTES

ACCESSORIES SUPPLIED: mortar guard. Service identification label. Self-adhesive label to be filled out for certification in accordance with standard CEI 23-51.
Front panels complete with EN 50022 rail (DIN 35) and fixing accessories. Blanking module profile.
NOTES: IP30 distribution boards cannot be fitted with glass or solid doors.
