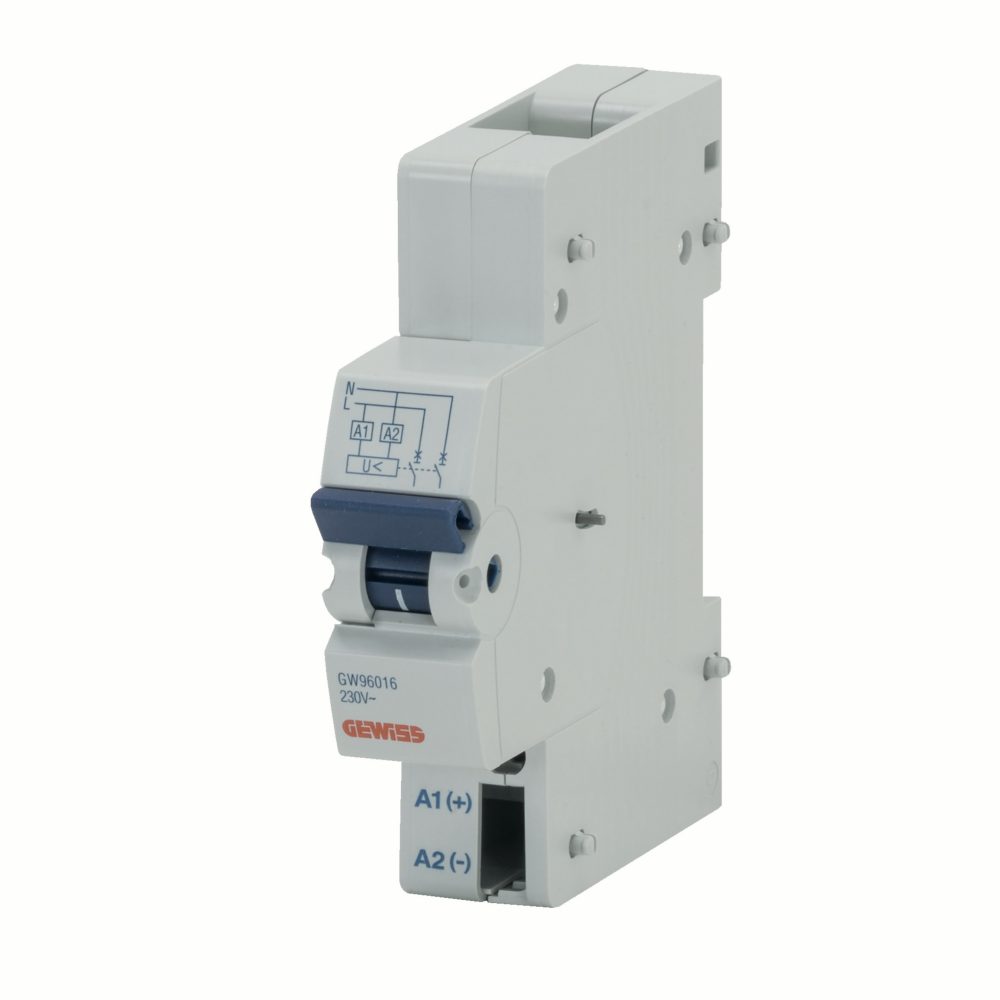

UNDER VOLTAGE RELEASE - 230V AC - 1 MODULE

Code: GW96016

Range: 90 AM Range
Modular accessories

The 90 AM range, in addition to auxiliaries common for the all circuit breakers, comprises many modular accessories for the protection, command, programming, measurement and signalling in electrical systems.

Technical Info

Information

Download

Software

Certificates

Rated voltage (V) 230 ac

No. of modules EN 50022 1

Ware Number 85389099

Technical characteristics - IT

Technical characteristics - DE

Technical characteristics - EN

Technical characteristics - ES

User guide

Disposal

Go to download area Go to download area

CADpro

Advanced design of electrical systems

CENTRAL

Quotation and Thermal test of modular enclosures

PROJEX

Low voltage system design

PBT-Q

Low voltage systems and boards

PRICE

Estimation of electrical systems

ENERGYpro

Boards for building sites, campings-piers and distribution

Go to software area Go to software area

Reach Declaration

Conformity declaration

CE marking

EQUIPMENT AND NOTES

APPLICATIONS: constantly controls the effective value of the voltage, and trips the coupled circuit breaker when the voltage falls below its minimum value.
The 300 ms delay allows any tiny blackouts to be avoided, preventing the untimely tripping of circuit breaker.
NOTE: up to max. one release (shunt trip or under voltage) can be fitted to each circuit breaker with an auxiliary contact.
