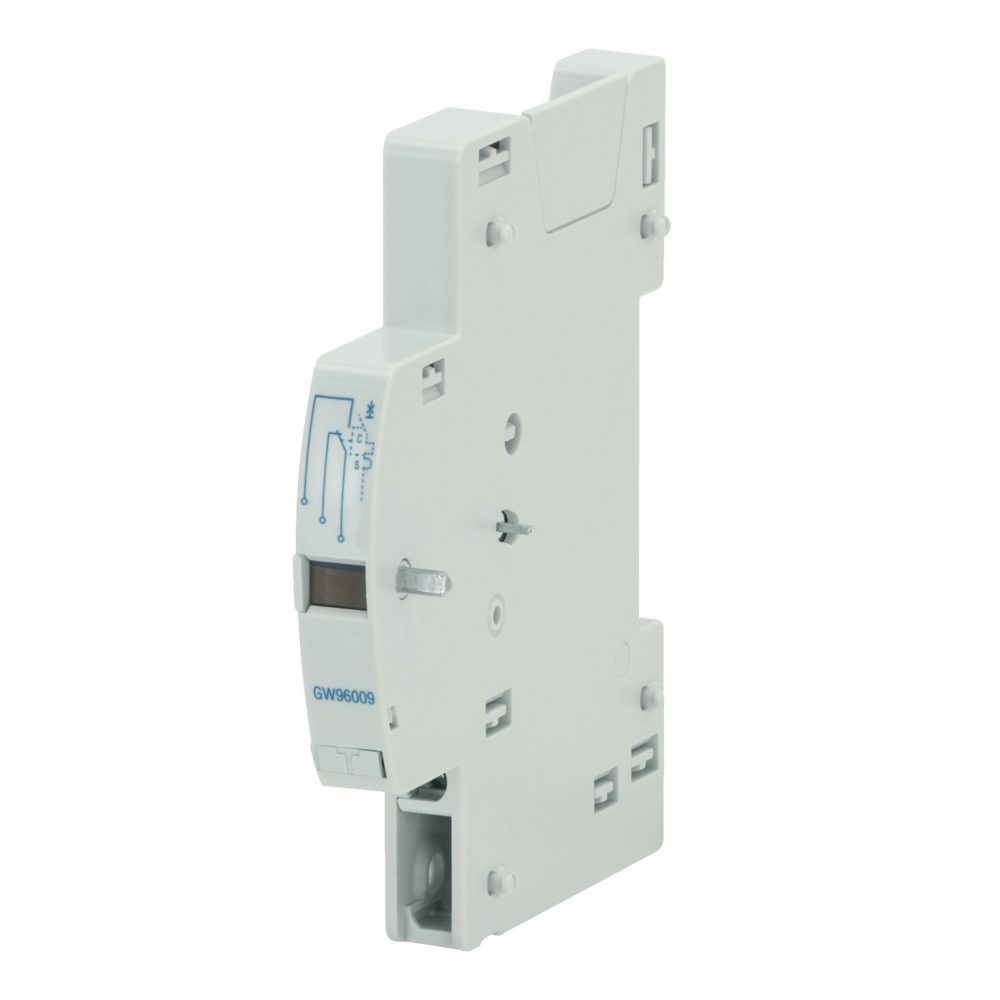

ADJUSTABLE AUXILIARY CONTACT OR FAULT INDICATOR SWITCH OR OPEN/CLOSED POSITION - 0,5 MODULES
Code:
GW96009
Range: 90 AM Range
Modular accessories
Modular accessories
The 90 AM range, in addition to auxiliaries common for the all circuit breakers, comprises many modular accessories for the protection, command, programming, measurement and signalling in electrical systems.
Technical Info
Information
Download
Software
Certificates
Contact rating in AC
6 A (230 V) 3 A (400 V)
Contact rating in DC
6 A (24 V) 2 A (60 V) 1.5 A (110 V) 1 A (250 V)
Type of contacts
1 Changeover
No. of modules EN 50022
0.5
Ware Number
85389099
EQUIPMENT AND NOTES
APPLICATIONS: using the specific button key, 2 separate functions can be obtained: signalling of automatic trip of the circuit breaker (auxiliary contact of fault indicator switch) or signalling of the circuit breaker contact position (auxiliary contact of position).
NOTE: up to max. 2 auxiliary contacts can be fitted to each circuit breaker.
NOTE: up to max. 2 auxiliary contacts can be fitted to each circuit breaker.
