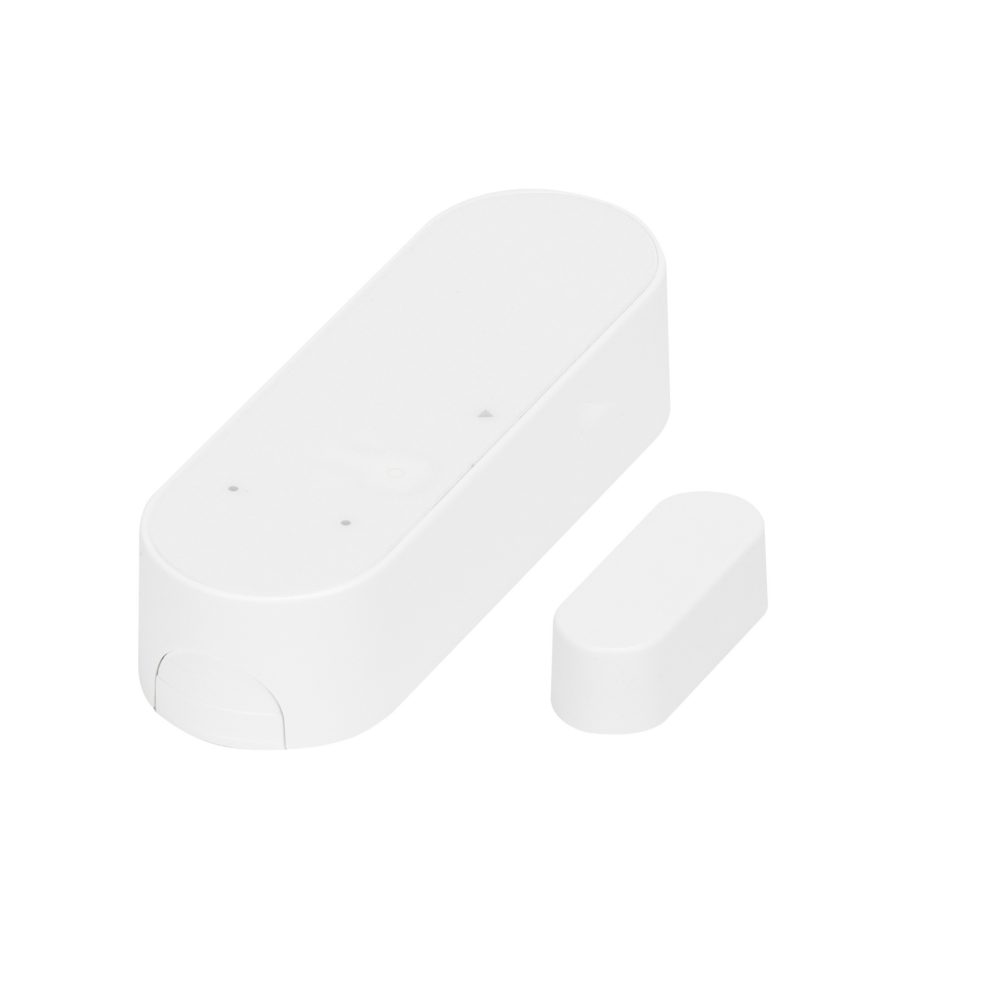

WINDOW SENSOR - WHITE - IP40 - BATTERY OPERATED - ZIGBEE

Code: GWA1513

Range: Home&Building Pro
Home & Building PRO system

Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.

IP40

Technical Info

Information

Download

Software

Video

Certificates

Category Window sensor

Colour White

Material Plastic

Communication protocol Zigbee (IEEE 802.15.4)

Supply voltage Battery powered

Power supply batteries 2 x AAA replaceable

Sensor type Magnetic

Output power 3 dBm

Temperature sensor 0…50 °C

Standard 2014/53/EU, EN 60669-2-1, ETSI EN 300 328

IP degree IP40

Working temperature 0 ÷ +50 °C

Stocking temperature -20 ÷ +80 °C

Relative humidity (non-condensative) 10 ÷ 95%

Dimensions LxHxD (mm) 76x26x17

Electrocod 051A

Ware Number 90271010

Product Data Sheet

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

Disposal

User guide (HR-IW)

User guide (MK-SQ-SL-HU-AR-TR)

User guide (IT-EN-FR-ES-DE-PT-RO)

Go to download area Go to download area

HOME

Configuration of the home electrical system

PRICE

Estimation of electrical systems

FENICE

APP for control and programming of connected devices

CADpro

Advanced design of electrical systems

ZIGBEE

Management and programming of zigbee systems

Go to software area Go to software area

Conformity declaration

Zigbee certificate GWA1513

CE marking

EQUIPMENT AND NOTES

CHARACTERISTICS: the sensor detects the opening and closing of doors and windows and includes a temperature sensor. Powered with 2 AAA type batteries (replaceable).
NOTES: Installation on doors or windows.
Use the sensor in combination with the connected Zigbee actuators GW1x826, GWA1201 or GWA1202 (max 5 sensors per actuator) or with the ZigBee actuators GWA1521, GWA1522, GWA1523 (max 1 sensor per actuator). The Zigbee-connected actuators GW1x826, GWA1201, GWA1202 can only be controlled in combination with the “Home Gateway” GW1x840.
