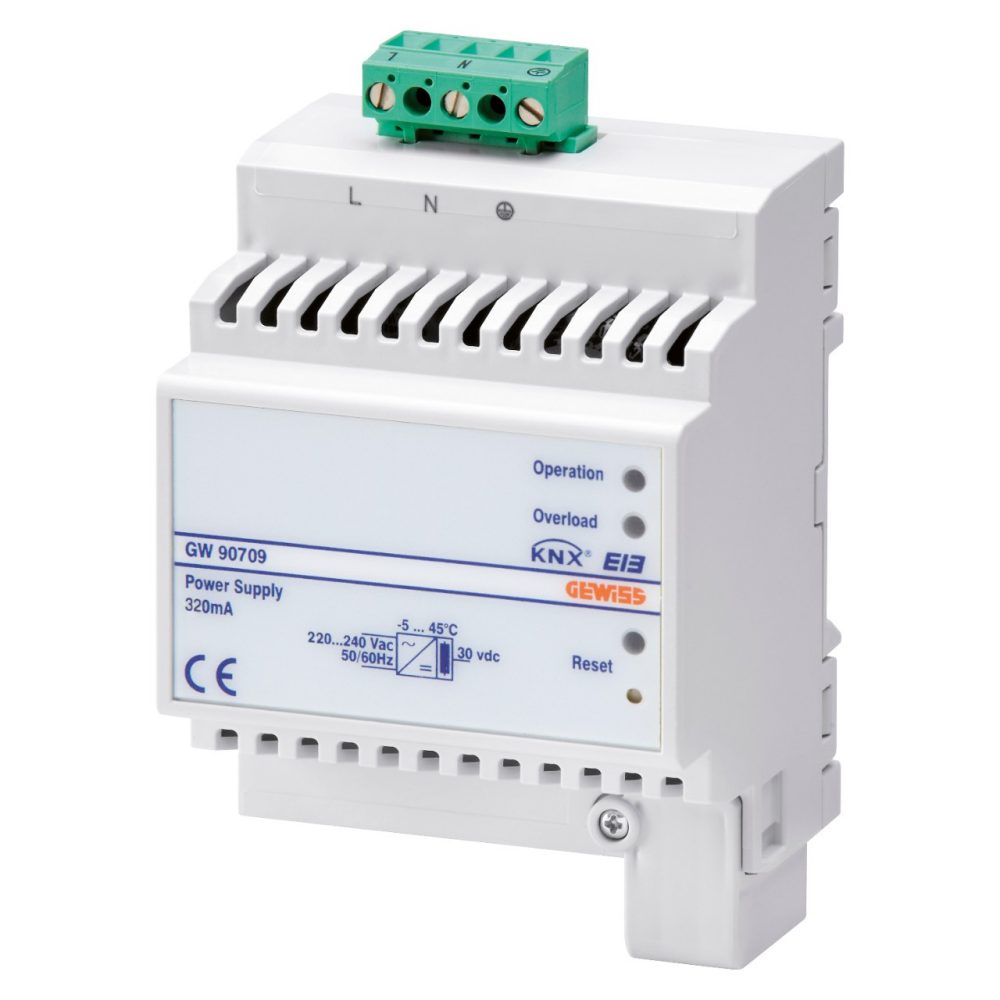

SELF-PROTECTED ELECTRONIC POWER SUPPLY 220-240V - 50/60Hz - 320mA - IP20 - 4 MODULES - DIN RAIL MOUNTING

Code: GW90709
Range: Home&Building Pro
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.

Technical Info

Information
Download
Software
Certificates
Output voltage 30V dc +/- 2V (SELV)
Current supplied (max) 320 mA
No. DIN modules 4
Ware Number 85044095

DXF drawing

VD2 Data Base

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

User guide (IT-EN-FR-ES-DE-PT-RO)

User guide (AR-TR-HU)

KNX

Database with GEWISS products for ETS software

Show more

SMART GATEWAY

APP for managing the KNX home automation system

Show more

PBT-Q

Low voltage systems and boards

Show more

CADpro

Advanced design of electrical systems

Show more

PRICE

Estimation of electrical systems

Show more

PROJEX

Low voltage system design

Show more

CE marking

KNX/EIB Registration

EQUIPMENT AND NOTES
CHARACTERISTICS: integrated coil to uncouple the power supply from the BUS line.
Reset push-button for restoring all the devices connected to the BUS line.
APPLICATIONS: the power supply feeds and controls the BUS voltage.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).
The maximum number of devices that can be powered is calculated on the basis of their absorption.
