PUSH-BUTTON PANEL WITH INTERCHANGEABLE SYMBOLS - WITH SWITCH ACTUATOR - KNX - 6+1 CHANNELS - 3 MODULES - SATIN WHITE - CHORUSMART

Code: GW15784A

Range: Home&Building Pro
Home & Building PRO system

Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.

Technical Info

Information

Download

Software

Certificates

Colour Satin White

No. channels 6+1

Output contacts 1NO/NC 10A(AC1) 230Vac

No. modules 3

Ware Number 85365080

User guide (AR-TR-HU)

ETS4 Data Base

User guide (IT-EN-FR-ES-DE-PT-RO)

Technical manual (EN)

Technical manual (IT)

Disposal

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

Go to download area Go to download area

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

HOME

Configuration of the home electrical system

CADpro

Advanced design of electrical systems

PRICE

Estimation of electrical systems

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Go to software area Go to software area

Display the certificate

Conformity declaration

CE marking

EQUIPMENT AND NOTES

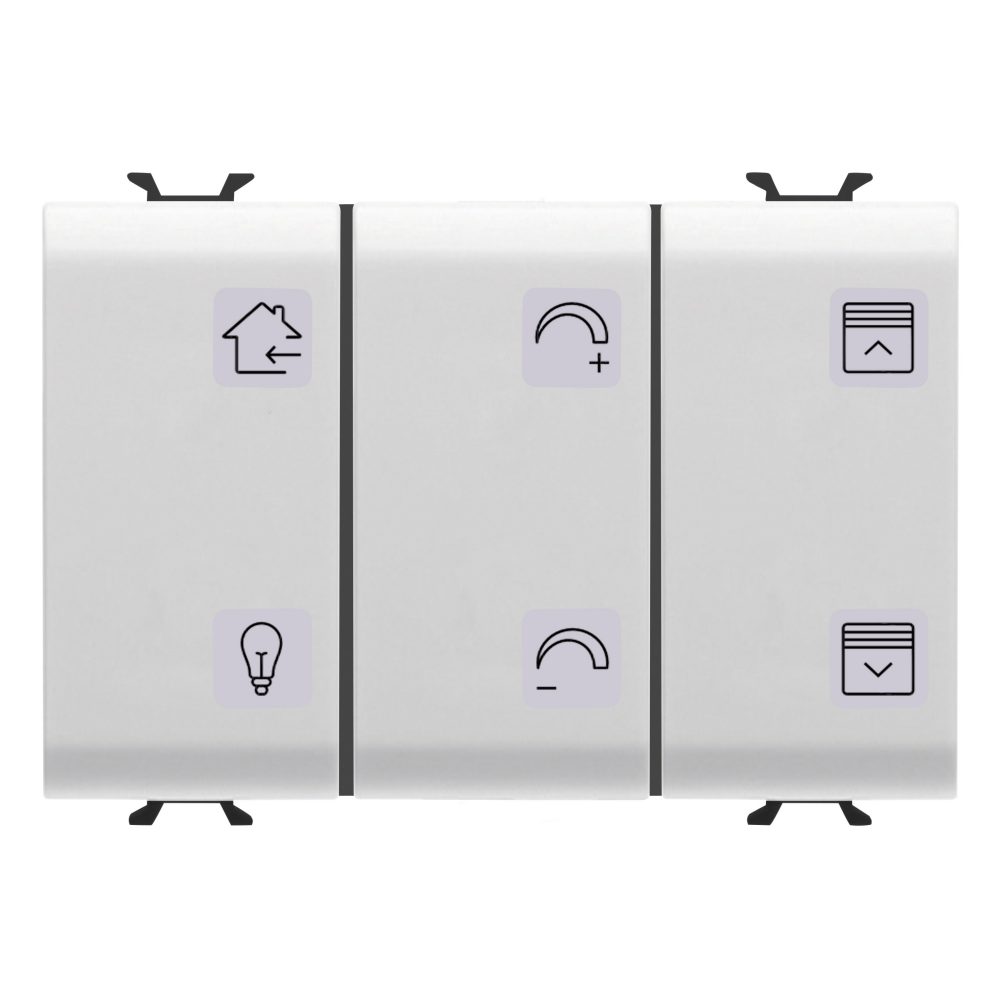

CHARACTERISTICS: KNX module with 6 independent channels, with replaceable button keys and 1-channel switch actuator. Each channel is associated with an amber/green night-time locating LED or a status display LED for the commanded load. One pair of keys can be used for local actuator command. The actuator manages the load via a potential-free output contact (NO). To be configured with ETS software. The package includes 3 replaceable button keys (GW1x553) and 10 lenses with illuminated symbols (2 x GW10502A, 1 x GW10509A, 1 x GW10510A, 1 x GW10513A, 1 x GW10514A, 1 x GW10519A, 1 x GW10520A, 1 x GW10529A, 1 x GW10530A). You can still customize the module with other type of replaceable button keys (suited for 1 or 2 lenses, with 2 diffusers, 1- or 2-module) or with other lenses in the catalogue.
APPLICATIONS: the push-button panel allows you to send ON-OFF commands with fronts management, switching commands and sequences, brief/prolonged contact closure management, timed commands, priority commands, commands for roller shutter management (single or double push-button), dimmers (single or double push-button) and scenes (memorisation and activation). The actuator allows the execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands and scene management commands.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).
