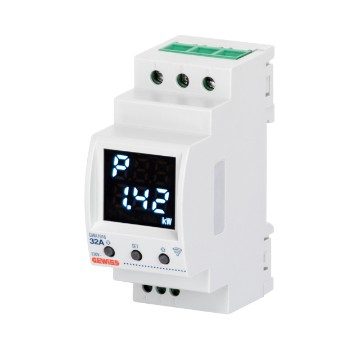

P-COMFORT - LOAD MANAGEMENT RELAY - ZIGBEE

Code: GWA1916

Range: Connected SMART HOME
Connected Smart Home system

The connected system, based on the Zigbee wireless protocol, offers a full range of solutions for smart homes and small offices that are suitable for both new buildings and renovations.
It enables you to control safety, comfort and consumption, through a unique user experience, using the Home Gateway APP and EGO Smart plates. The system integrates with the Google Home IoT platforms, Amazon Alexa and IFTTT, and all functions can be controlled with Google and Alexa voice assistants.

Technical Info

Information

Download

Software

Video

Certificates

Description Load management relay p-comfort (radio frequency version)

Model Radio frequency version

Rated voltage (V) 230V ac

No. of modules EN 50022 2

Rated current 32 A

Type relay contact Changeover (potential free contact)

Capacity relay contact 16 A AC1 250 V ac

Standard EN 60669-1, EN 60669-2-1, EN 301489-1, EN 301489-17

Rated frequency (Hz) 50

Insulation voltage (Ui) 1000 V

Rated impulse withstand voltage (Uimp) 1 kV

Section rigid cable Max 6 mm²

Section flexible cable Max 4 mm²

Rigid cable section for contact terminals Max 4 mm²

Flexible cable section for contact terminals Max 2,5 mm²

Operating temperature -5 ÷ +45 °C

Stocking temperature -25 ÷ +70 °C

Absorbed power with In 2 VA

Sound level at 10 cm 85 Db

Max outdoor distance of signal 100 m

Max number of Zigbee devices can be connected 10

Radio protocol ZigBee / IEEE 802.15.4

Output power of signal +8 dBm

Frequency of signal 2.4

Measured sizes Active power (absorbed and supplied), active energy (absorbed and supplied), current, voltage, power factor, frequency

Resetting of energy count Yes

Acoustic warning threshold exceeded Yes

Adjustament power range 0 ÷ 8 kW (3,8 kW default)

Adjustment of non-priority load contact opening delay time 10 ÷ 120 s (45 s default)

Adjustment of non-priority load contact opening time 10 ÷ 255 s (90 s default)

Electrocod 051A

Ware Number 85389099

Product Data Sheet

User guide (IT-EN-FR-DE)

User guide (AR-TR-HR-IW)

Configuration manual (IT)

User guide (ES-PT-RO)

User guide (MK-SQ-SL-HU)

System manual and technical characteristics - IT

System manual and technical characteristics - EN

Go to download area Go to download area

HOME

Configuration of the home electrical system

PRICE

Estimation of electrical systems

FENICE

APP for control and programming of connected devices

CADpro

Advanced design of electrical systems

ZIGBEE

Management and programming of zigbee systems

Go to software area Go to software area

Conformity declaration

Zigbee certificate GWA1916

CE marking

EQUIPMENT AND NOTES

APPLICATION: The P-Comfort relay can be installed in electrical systems limited to a maximum power load of 6 kW. In the event of overload due to the simultaneous switching-on of multiple electrical loads, P-Comfort prevents the interruption of electrical power by disconnecting non-preferred loads controlled by ZigBee-connected actuators: GW1x826, GWA1201, GWA1202, GWA1221, GWA1222, GWA1523, GWA1526, GWA1521 or GWA1522, or wired to the relay contact on the device (maximum 10 devices total). The disconnection and reconnection sequence for non-preferred loads can be set by Priority (regardless of load absorption) or by Power (depending on the power absorbed).
NOTES: The Zigbee-connected actuators GW1x826, GWA1201, GWA1202, GWA1221, GWA1222 can only be controlled in combination with the “Home Gateway” GW1x840.
