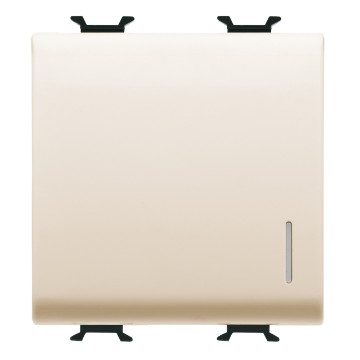

REVERSING SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 2 MODULES - IVORY - CHORUSMART
Code:
GW11102
Range: CHORUSMART - Domestic range
Glossy ivory modular devices
Glossy ivory modular devices
The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements. Colours and finishes: glossy ivory, bright and versatile. Unlimited functions in reduced spaces: the ChoruSmart range consists of button keys with ½, 1, 2 and 3 modules to optimise space as needed. Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support.
125 °C
850 °C
Technical Info
Information
Download
Software
Certificates
Category
Reversing switch
Button key
With diffuser
Colour
Ivory
Description
1P - 16AX illuminable
Voltage
250 V ac
Standard
EN 60669-1
Resistance at test voltage
2000 V at 50 Hz for 1 minute
Rated power of 230V LED lamps
200 W
Insulation resistance
> 5 MOhm
Wiring terminals
With screw
Prolonged operation switch (no.of position changes)
40.000 at In 250 V ac cosφ=0,6
Thermo-pressure with ball
125 °C
Glow Wire Test
850 °C
Terminal grip on cable traction
> 50 N
Terminal tightening capacity
stranded cables (mm²) min. 0,75 - max. 2x4
stranded cables (mm²) min. 0,75 - max. 2x4
Terminal tightening capacity
solid cables (mm²) min. 0,5 - max. 2x2,5
solid cables (mm²) min. 0,5 - max. 2x2,5
No. modules
2
Material
Technopolymer
Ware Number
85365080
EQUIPMENT AND NOTES
CHARACTERISTICS: the illuminable articles use LED signalling units, not included.
