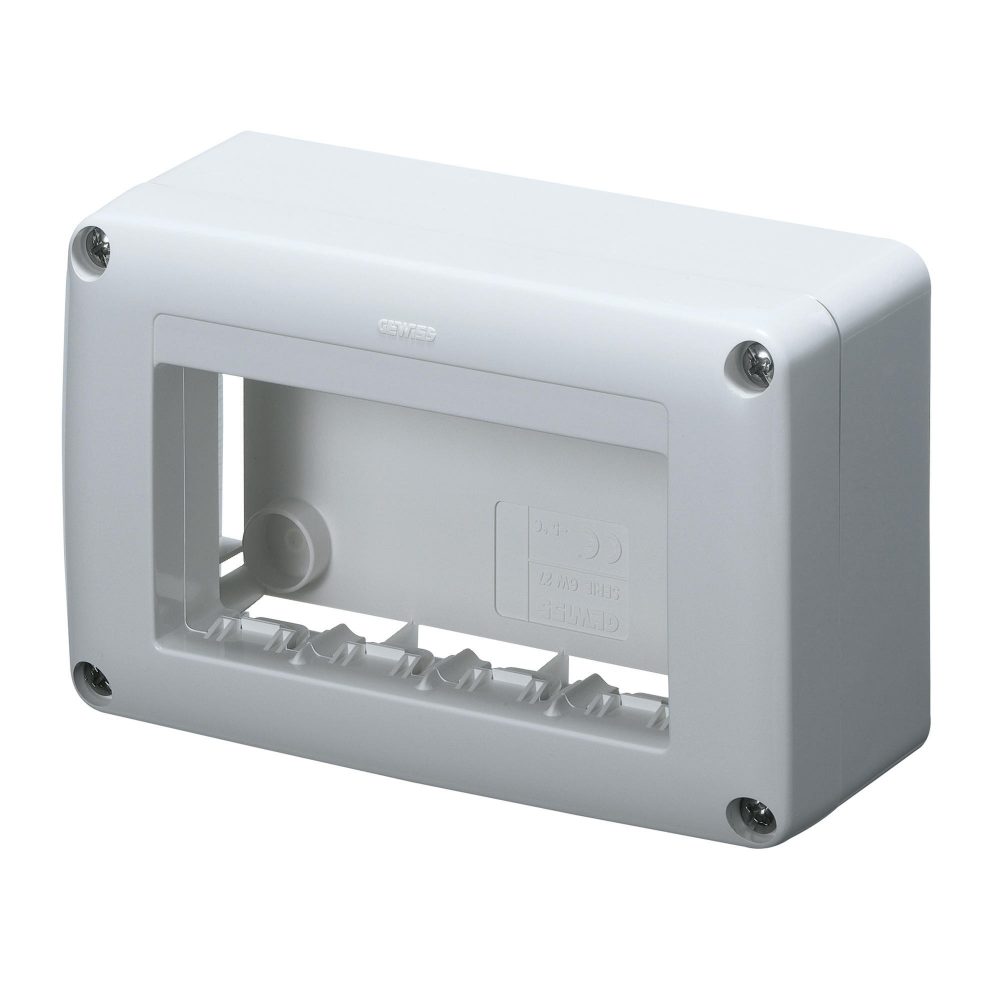

SELF-SUPPORTING DEVICE BOX FOR SYSTEM DEVICE - SKIRT AND FRAMNE TRUNKING - 4 GANG - SYSTEM RANGE - WHITE RAL 9010

Code: GW27621
Range: 27 COMBI Range
Wall-mounting enclosures and modular components
A complete, versatile system of modular enclosures, perfectly integrated in the SYSTEM domestic range capable to meet the high protection installation requirements of domestic, commercial and industrial sectors. The 27 COMBI range is available both in the IP40 version and in watertight versions with IP55 and IP65 degree of protection, recommended for all outdoor applications which are subjected to extreme atmospheric conditions.

IP40

IK07

650 °C

70 °C

Technical Info

Information
Download
Software
Certificates
Description 4 modules
No. gangs 4
Colour White RAL 9010
No. knockout holes Ø23 1 on the bottom
Type of knockout holes Removable with tool
IP degree IP40
Insulation class II
Mechanical resistance IK07
Compartment pre-arrangement 1
Characteristics Halogen free
Lid screws Corrosion-resistant steel
Torque screws tightening 0.8 Newton/meter
Outer dim. LxHxD (mm) 132x82x54
Glow Wire Test 650 °C
Thermo-pressure with ball 70 °C
Standard EN 50085-2-1
Installation temperature -5 +60 °C
Electrocod 0212
Ware Number 85381000

Product Data Sheet

Technical characteristics - EN

Technical characteristics - IT

Technical characteristics - ES

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

PRICE

Estimation of electrical systems

Show more

CADpro

Advanced design of electrical systems

Show more

Reach Declaration

Conformity declaration

CE marking

EQUIPMENT AND NOTES
CHARACTERISTICS: fitted for mini-trunking with sizes LxH (mm): 15x15, 20x20, 22x10, 30x10, 30x15, 35x15. Knockout holes removable with tool. Complete insulation can be obtained by using the screwcaps GW44622. GW27627 and GW27628 fitted for division into compartments using the special functional dividers.
