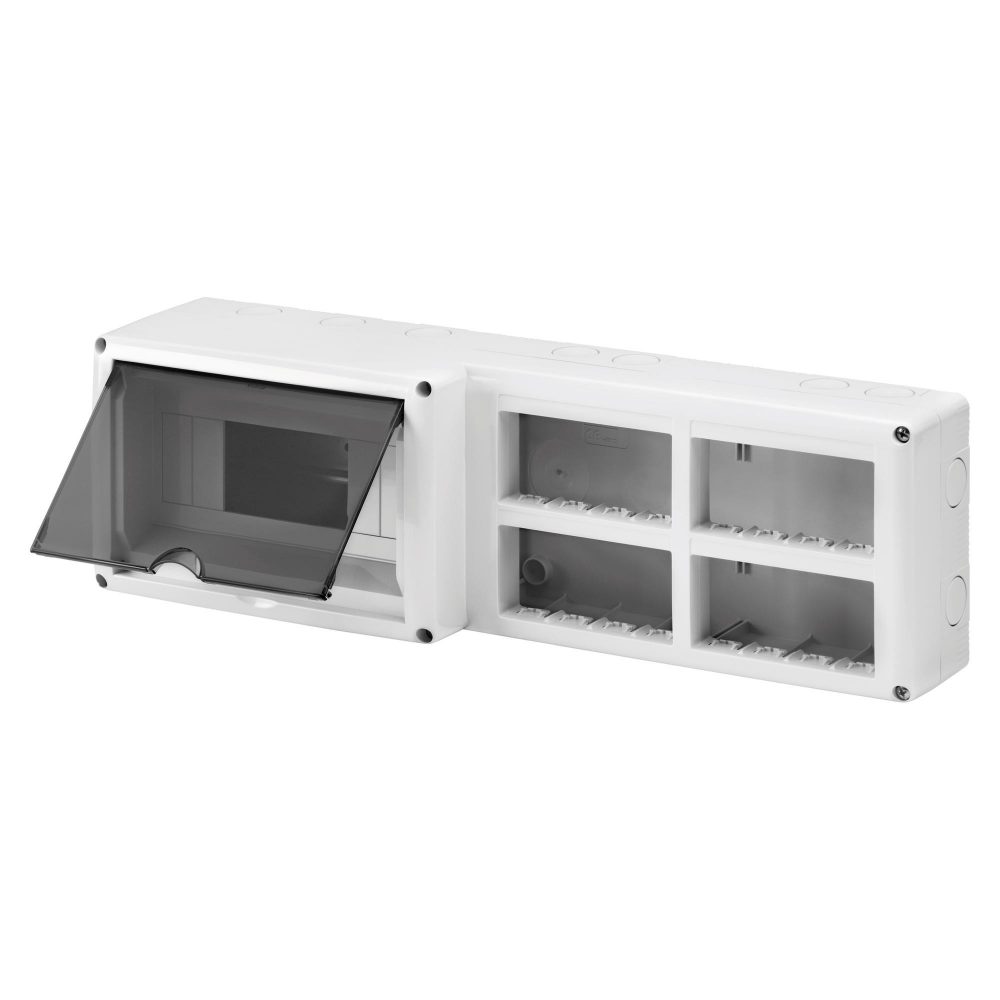

Description
16 gang + 8 DIN modules
Colour
Grey RAL 7035
Door type
Rigid
Door colour
Smoked Transparent
No. knockout holes Ø23
18 on sides / 2 on the bottom
Type of knockout holes
Removable with tool
IP degree
IP40
Insulation class
II
Mechanical resistance
IK07
Configuration
Module 4 x 4
Compartment pre-arrangement
2
Type of enclosure
GP
No. SYSTEM modules
16
No. DIN modules
8
Characteristics
Halogen free
Lid screws
Stainless steel
Torque screws tightening
0.8 Newton/meter
Outer dim. LxHxD (mm)
429x132x95
Dispersible power (W)
18
Rated voltage
400V ac
Rated current (In)
32 A
Insulation voltage (Ui)
750 V
Glow Wire Test
650 °C
Thermo-pressure with ball
70 °C
Standard
EN 60670-1 - EN 60670-24
Installation temperature
-25 +60 °C
Electrocod
0212
Ware Number
85381000
