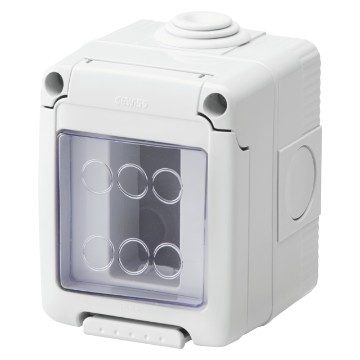

WATERTIGHT ENCLOSURE FOR SYSTEM DEVICES - 1 GANG - GREY RAL 7035 - IP55

Code: GW27041
Range: 27 COMBI Range
Wall-mounting enclosures and modular components
A complete, versatile system of modular enclosures, perfectly integrated in the SYSTEM domestic range capable to meet the high protection installation requirements of domestic, commercial and industrial sectors. The 27 COMBI range is available both in the IP40 version and in watertight versions with IP55 and IP65 degree of protection, recommended for all outdoor applications which are subjected to extreme atmospheric conditions.

IP55

IK07

650 °C

70 °C

Technical Info

Information
Download
Software
Certificates
Description 1 module
Colour Grey RAL 7035
Door type With membrane
Door colour Transparent
No. knockout holes Ø23 3 on sides / 1 on the bottom
N. holes Ø 23 with cable gland 1
Type of knockout holes Removable with tool
IP degree IP55
Insulation class II
Mechanical resistance IK07
Lid screws Stainless steel
Torque screws tightening 0.8 Newton/meter
Outer dim. LxHxD (mm) 66x82x65
Glow Wire Test 650 °C
Thermo-pressure with ball 70 °C
Standard EN 60670-1
Installation temperature -25 +60 °C
Electrocod 0212
Ware Number 85381000

Product Data Sheet

BIM

Technical characteristics - EN

Technical characteristics - IT

Technical characteristics - ES

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

PRICE

Estimation of electrical systems

Show more

CADpro

Advanced design of electrical systems

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

Reach Declaration

Conformity declaration

CE marking

Display the certificate

EQUIPMENT AND NOTES
CHARACTERISTICS: Knockout holes removable with tool. Enclosures are customized for fixing the earth terminal GW26407. Complete insulation can be obtained by using the screwcaps GW44622.
ACCESSORIES SUPPLIED: quick entry cable gland for cables with Ø from 4 to 14 mm and conduits Ø 16 and 20 mm.
