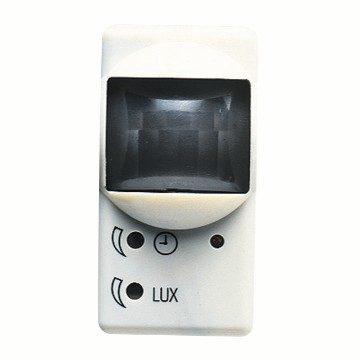

INFRARED MOVEMENT DETECTOR - 230V ac 50/60Hz - 1NO 3A(AC1) 250V - 1 MODULE - SYSTEM WHITE
Code:
GW20821
Range: SYSTEM WHITE - Domestic range
Modular devices
Modular devices
The System modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements. Colour and finiture: glossy white, bright and versatile
Ideal for flush-mounting solutions (for rectangular or square boxes), surface-mounting solutions, and for special applications. The range includes commands, socket- outlets, protection, indicators, connectors and devices for the control, safety and comfort of your home.
Ideal for flush-mounting solutions (for rectangular or square boxes), surface-mounting solutions, and for special applications. The range includes commands, socket- outlets, protection, indicators, connectors and devices for the control, safety and comfort of your home.
125 °C
850 °C
Technical Info
Information
Download
Software
Certificates
Output contacts
1NO 3A(AC1) 250V ac
Colour
White
Supply voltage
230V ac - 50/60Hz
Technology
Infrared
Standard
EN 60669-1, EN 60669-2-1
Resistance at test voltage
2000 V at 50 Hz for 1 minute
Insulation resistance
> 5 MOhm
Wiring terminals
With screw
Prolonged operation switch (no.of position changes)
40.000 at In 250 V ac cosφ=0,6
Thermo-pressure with ball
125 °C
Glow Wire Test
850 °C
Terminal grip on cable traction
> 50 N
Terminal tightening capacity
stranded cables (mm²) min. 0,75 - max. 2x4
stranded cables (mm²) min. 0,75 - max. 2x4
Terminal tightening capacity
solid cables (mm²) min. 0,5 - max. 2x2,5
solid cables (mm²) min. 0,5 - max. 2x2,5
No. SYSTEM modules
1
Material
Technopolymer
Electrocod
0513
Ware Number
85365080
EQUIPMENT AND NOTES
CHARACTERISTICS: adjustment of the intervention duration 15 sec - 10 min. Light sensitive threshold adjustment - min. 10 lux - max. inhibited. Sensor with fixed lens. Suitable for commanding halogen lamps/resistive loads: 700 W, incandescent lamps: 450 W, low voltage halogen lamps (12 V) controlled by toroidal or electronic transformers: 450 W, uncompensated fluorescent lamps: 2x58 W, motors and gear motors: 400 VA. Not suitable for compensated fluorescent lamps, for discharge lamps and for all loads not indicated that must be commanded using a support relay.
APPLICATIONS: Energy-saving: command of the lighting of rooms and areas only when people pass through. Comfort and safety: automatic command of circuits without needing to activate one-way switches.
NOTES: do not install the product in watertight plates: the lid membrane does not allow the detector lens to work correctly.
APPLICATIONS: Energy-saving: command of the lighting of rooms and areas only when people pass through. Comfort and safety: automatic command of circuits without needing to activate one-way switches.
NOTES: do not install the product in watertight plates: the lid membrane does not allow the detector lens to work correctly.
