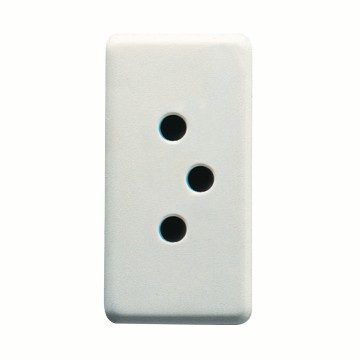

SWISS SOCKET-OUTLET 250V ac - 2P+E 10A - TYPE 12 - 1 MODULE - SYSTEM WHITE
Code:
GW20351
Range: SYSTEM WHITE - Domestic range
Modular devices
Modular devices
The System modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements. Colour and finiture: glossy white, bright and versatile
Ideal for flush-mounting solutions (for rectangular or square boxes), surface-mounting solutions, and for special applications. The range includes commands, socket- outlets, protection, indicators, connectors and devices for the control, safety and comfort of your home.
Ideal for flush-mounting solutions (for rectangular or square boxes), surface-mounting solutions, and for special applications. The range includes commands, socket- outlets, protection, indicators, connectors and devices for the control, safety and comfort of your home.
125 °C
850 °C
Technical Info
Information
Download
Software
Certificates
Category
Power
Description
2P+E - 10A - type 12
Colour
White
Voltage
250 V ac
Earth pit
-
Standard
Swiss
Characteristics
-
For plug pins
Ø 4 mm
Wiring terminals
With screw
Standard
IEC 60884-1
Resistance at test voltage
2000 V at 50 Hz for 1 minute
Prolonged operation switch (no.of position changes)
10.000 at In 250 V ac cosφ=0,8
Thermo-pressure with ball
125 °C
Glow Wire Test
850 °C
Terminal grip on cable traction
> 50 N
Terminal tightening capacity
stranded cables (mm²) min. 0,75 - max. 2x4
stranded cables (mm²) min. 0,75 - max. 2x4
Terminal tightening capacity
solid cables (mm²) min. 0,5 - max. 2x2,5
solid cables (mm²) min. 0,5 - max. 2x2,5
No. SYSTEM modules
1
Material
Technopolymer
Electrocod
0131
Ware Number
85366990
EQUIPMENT AND NOTES
NOTES: contact Gewiss customer service to check if the product meets the regulations of the country concerned before purchasing it. The socket is no longer compliant with Swiss standard SEV1011 of 2009.
