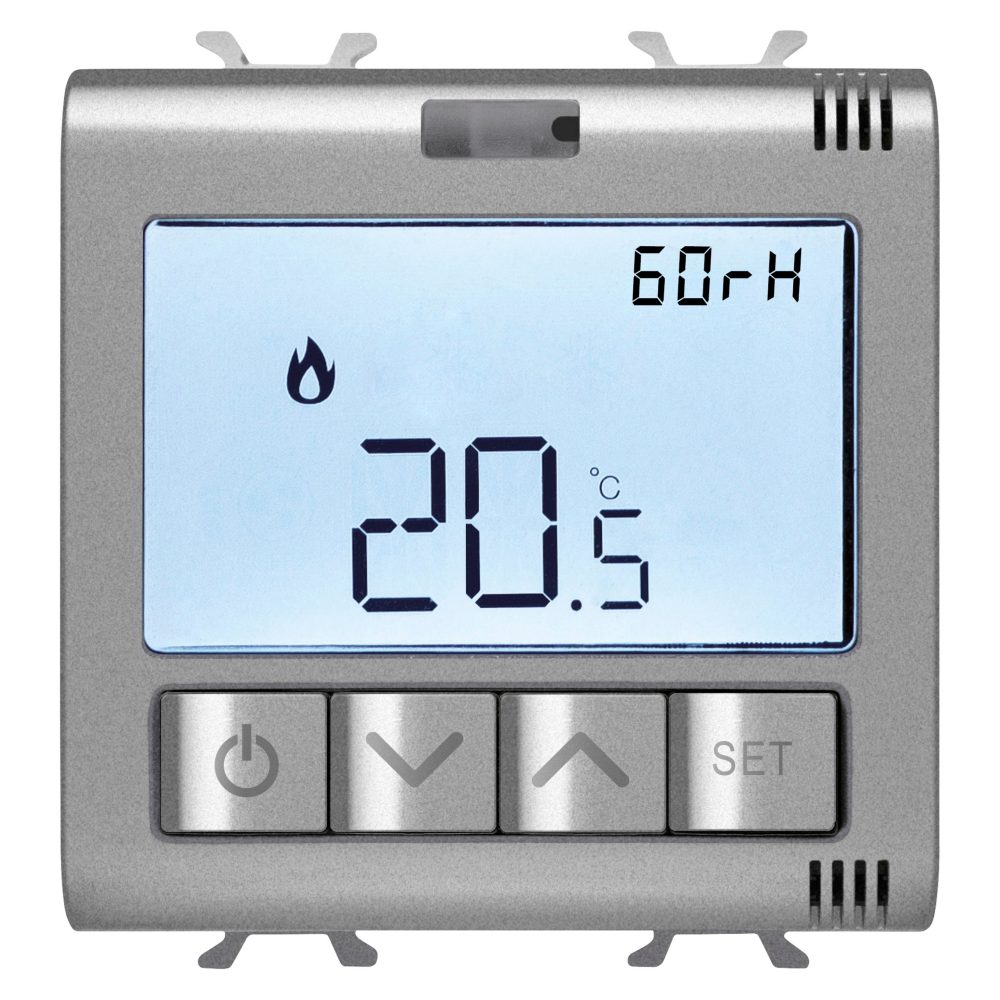

CONNECTED THERMOSTAT WITH HUMIDITY MEASURE - ZIGBEE - 100-240 V ac 50/60 Hz - NA 5A (AC1) 240 V ac - 2 MODULES - TITANIUM - CHORUSMART
Code:
GW14709
Range: CHORUSMART - Domestic range
Glossy titanium modular devices
Glossy titanium modular devices
The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.
Colors and finishes: glossy painted titanium, innovative and trendy.
Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1 and 2 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
Colors and finishes: glossy painted titanium, innovative and trendy.
Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1 and 2 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
IP20
Technical Info
Information
Download
Software
Video
Certificates
Colour
Glossy Titanium
Output contacts
1 NO / NC 5A (AC1) 240 V ac
Power supply
100 ÷ 240 V ac - 50/60 Hz
No. modules
2
Radio connections
Zigbee (IEEE 802.15.4)
Standard
2014/53/EU, 2011/65/EU + 2015/863, EN 60730-1, EN 60730-2-7, EN 60730-2-9, EN 301 489-1, EN 301 489-17, EN 300 328, EN IEC 63000
Working temperature
-5 ÷ +45 °C
Relative humidity (non-condensative)
Max 93%
Power output Zigbee
10 dBm
Wiring terminals
With screw
Terminal tightening capacity
stranded cables (mm²) Max. 1,5
stranded cables (mm²) Max. 1,5
Terminal tightening capacity
solid cables (mm²) Max. 1,5
solid cables (mm²) Max. 1,5
Category
Thermostat
IP degree
IP20
Measured sizes
Temperature, humidity
Functions
Heating and cooling control; algorithms for 2-way systems: two-point (On/Off) and proportional integral (PWM).
Type of display
LCD
Ware Number
90321020
EQUIPMENT AND NOTES
CHARACTERISTICS: flush-mounted thermostat for the control of heating/cooling systems with manual temperature management and possibility of shutdown. Control algorithms for two-way systems: two points (ON/OFF), proportional-integral (PWM). The thermostat can control a solenoid valve for heating or cooling through a local contact or via Zigbee, in which case the solenoid valve must be controlled by a Zigbee actuator. GWA1521, GWA1522, GWA1523, GW1x826, GWA1201, and GWA1202 Zigbee connected actuators can be used.
The thermostat is equipped with integrated temperature and humidity sensors. The thermostat has an input for a NTC sensor (GW10800 and GW1x900 sensors can be used) for external temperature measurement (e.g., for compensation of temperatures measured locally by the thermostat or for protection in case of underfloor heating/cooling).
APPLICATIONS: climate control (heating or cooling) of a housing unit or area; option to manage a daily or weekly heating/cooling profile via the APP. The device measures humidity, if a threshold (defined during configuration) is exceeded, Zigbee can activate a dehumidification system and display/notify the measurement on the APP.
Use in traditional unconnected systems: the connected thermostat can also be used in traditional unconnected installations. In this case, configuration is not carried out via the APP and the NTC sensor input can only be used to compensate for the temperature measurement detected locally by the thermostat.
The thermostat is equipped with integrated temperature and humidity sensors. The thermostat has an input for a NTC sensor (GW10800 and GW1x900 sensors can be used) for external temperature measurement (e.g., for compensation of temperatures measured locally by the thermostat or for protection in case of underfloor heating/cooling).
APPLICATIONS: climate control (heating or cooling) of a housing unit or area; option to manage a daily or weekly heating/cooling profile via the APP. The device measures humidity, if a threshold (defined during configuration) is exceeded, Zigbee can activate a dehumidification system and display/notify the measurement on the APP.
Use in traditional unconnected systems: the connected thermostat can also be used in traditional unconnected installations. In this case, configuration is not carried out via the APP and the NTC sensor input can only be used to compensate for the temperature measurement detected locally by the thermostat.
