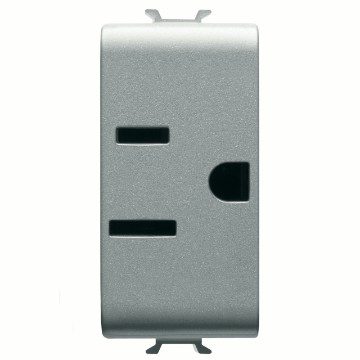

USA STANDARD SOCKET-OUTLET 250/125V ac - 2P+E 15A - 1 MODULE - TITANIUM - CHORUSMART
Code:
GW14286
Range: CHORUSMART - Domestic range
Glossy titanium modular devices
Glossy titanium modular devices
The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.
Colors and finishes: glossy painted titanium, innovative and trendy.
Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1 and 2 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
Colors and finishes: glossy painted titanium, innovative and trendy.
Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1 and 2 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
125 °C
850 °C
Technical Info
Information
Download
Software
Certificates
Category
Socket-outlet
Description
2P+E - 15A
Colour
Glossy Titanium
Voltage
250/125V AC
Standard
USA
For plug pins
Flat parallel horizontal
Wiring terminals
With screw
Standard
IEC 60884-1
Resistance at test voltage
2000 V at 50 Hz for 1 minute
Insulation resistance
> 5 MOhm
Prolonged operation socket (no.of position changes)
10.000 at In 250 V ac cosφ=0,8
Thermo-pressure with ball
125 °C
Glow Wire Test
850 °C
Terminal grip on cable traction
> 50 N
Terminal tightening capacity
stranded cables (mm²) min. 0,75 - max. 2x4
stranded cables (mm²) min. 0,75 - max. 2x4
Terminal tightening capacity
solid cables (mm²) min. 0,5 - max. 2x2,5
solid cables (mm²) min. 0,5 - max. 2x2,5
No. modules
1
Electrocod
0131
Material
Technopolymer
Ware Number
85366990
