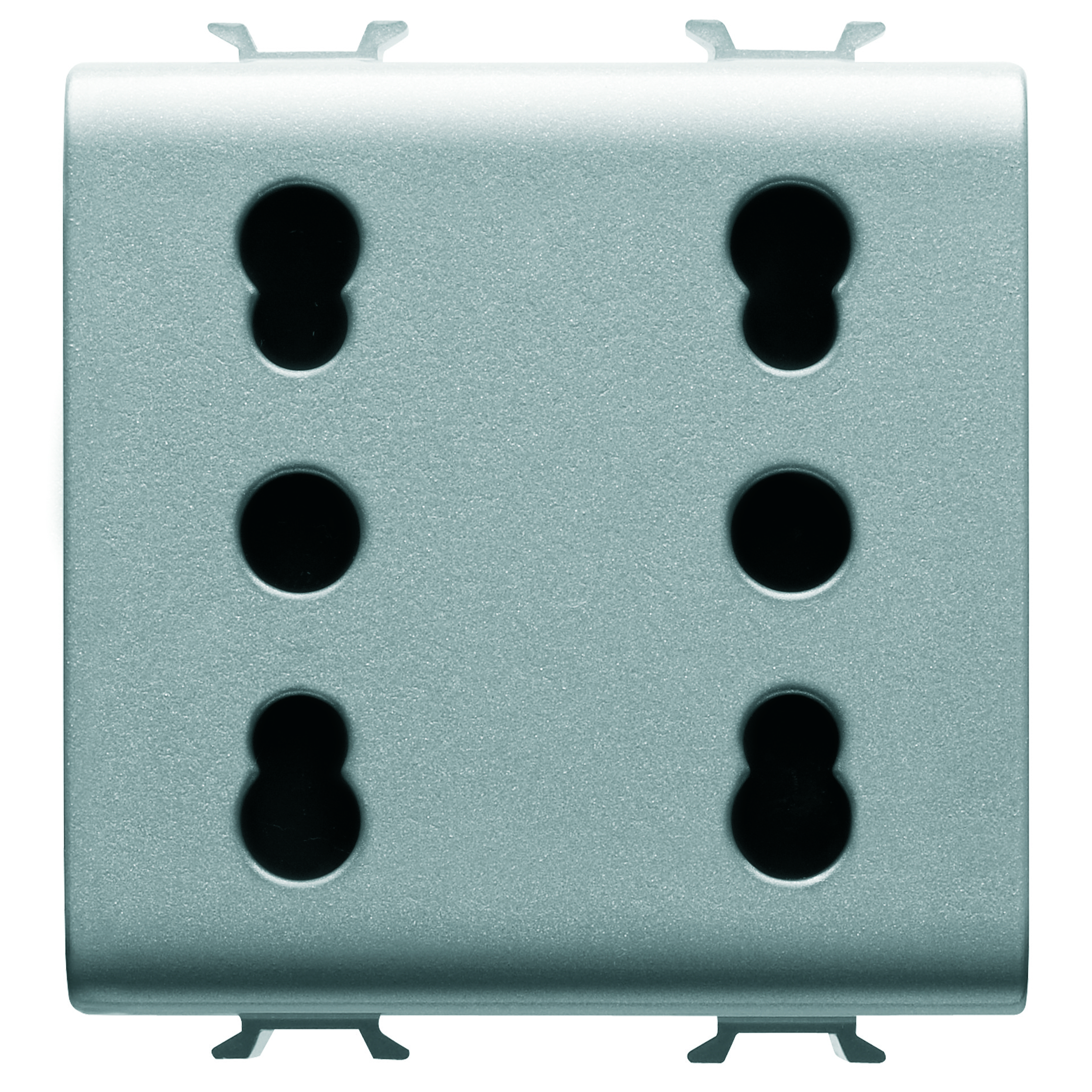

ITALIAN STANDARD DOUBLE SOCKET-OUTLET 250V ac - 2X2P+E 16A DUAL AMPERAGE - P11-P17 - 2 MODULES - TITANIUM - CHORUSMART
Code:
GW14208
Range: CHORUSMART - Domestic range
Glossy titanium modular devices
Glossy titanium modular devices
The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.
Colors and finishes: glossy painted titanium, innovative and trendy.
Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1 and 2 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
Colors and finishes: glossy painted titanium, innovative and trendy.
Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1 and 2 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
125 °C
850 °C
Technical Info
Information
Download
Software
Certificates
Category
Double socket-outlet
Description
2x2P+E - 16A Dual amperage
Colour
Glossy Titanium
Voltage
250 V ac
Standard
English
Characteristics
With safety shields
For plug pins
Ø 4 / 5 mm
Wiring terminals
With screw
Socket-out type
P11-P17
Standard
CEI 23-50
Resistance at test voltage
2000 V at 50 Hz for 1 minute
Insulation resistance
> 5 MOhm
Prolonged operation socket (no.of position changes)
10.000 at In 250 V ac cosφ=0,8
Thermo-pressure with ball
125 °C
Glow Wire Test
850 °C
Terminal grip on cable traction
> 50 N
Terminal tightening capacity
stranded cables (mm²) min. 0,75 - max. 2x4
stranded cables (mm²) min. 0,75 - max. 2x4
Terminal tightening capacity
solid cables (mm²) min. 0,5 - max. 2x2,5
solid cables (mm²) min. 0,5 - max. 2x2,5
No. modules
2
Electrocod
0131
Material
Technopolymer
Ware Number
85366990
EQUIPMENT AND NOTES
CHARACTERISTICS: with safety shields. The wiring is carried out via 3 terminals that power the socket-outlets, without using U-bolts.
