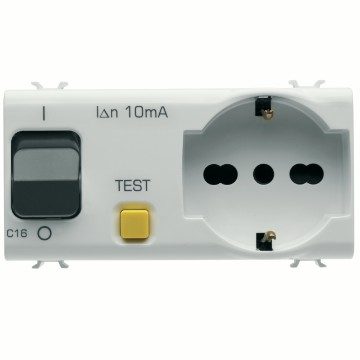

INTERLOCKED SWITCHED SOCKET-OUTLET - 2P+E 16A P40 - WITH RESIDUAL CURRENT CIRCUIT BREAKER 1P+N 16A - 230Vac - 4 MODULES - GLOSSY WHITE - CHORUSMART

Code: GW10322

Range: CHORUSMART - Domestic range
Glossy white modular devices

The ChoruSmart modular devices allow you to create infinite combinations of devices and plates, thanks to a complete range that covers all design, functional and installation needs.
Colours and finishes: glossy white, bright and versatile.
Unlimited functions in compact spaces: the ChoruSmart range consists of button keys with ½, 1 and 2 rocker modules, to optimise space according to needs, and axial buttons in the EVO or SMART version, to meet the latest requirements.
Front coupling: front coupling allows the components to be assembled and released quickly and easily, with no need to remove the support, which is the same for all plates and boxes.

125 °C

850 °C

Technical Info

Information

Download

Software

Certificates

Category Dual amperage interlocked socket-outlet

Description 2P+E - 16A

Colour Glossy white

Type Interlocked

Voltage 230V ac

Standard English

Wiring terminals With screw

Protection Miniature circuit breaker + residual current device

Socket-out type P40

Miniature circuit breakers 1P+N 16A

Breaking capacity 3 kA

Idn 10 mA

Standard IEC 60884-1; EN 61009-1; EN 61008-1

Resistance at test voltage 2000 V at 50 Hz for 1 minute

Insulation resistance > 5 MOhm

Prolonged operation socket (no.of position changes) 10.000 at In 250 V ac cosφ=0,8

Thermo-pressure with ball 125 °C

Glow Wire Test 850 °C

Terminal grip on cable traction > 50 N

Terminal tightening capacity
stranded cables (mm²) min. 0,75 - max. 2x4

Terminal tightening capacity
solid cables (mm²) min. 0,5 - max. 2x2,5

No. modules 4

Electrocod 0131

Material Technopolymer

Ware Number 85366990

Product Data Sheet

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

Disposal

User guide

Go to download area Go to download area

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

HOME

Configuration of the home electrical system

PRICE

Estimation of electrical systems

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

CADpro

Advanced design of electrical systems

Go to software area Go to software area

Reach Declaration

CE marking

EQUIPMENT AND NOTES

CHARACTERISTICS: Interlocked switched socket-outlets with automatic miniature circuit breaker (C characteristic) and residual current circuit breaker (type A). Pits under tension only with plug inserted.
APPLICATIONS: suitable for installation in the system terminations to protect the load.
