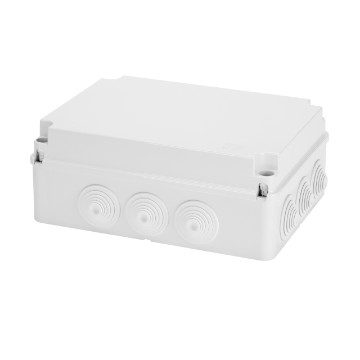

JUNCTION BOX WITH PLAIN SCREWED LID - IP55 - INTERNAL DIMENSIONS 300X220X120 - WALLS WITH CABLE GLANDS - GREY RAL 7035

Code: GW44009

Range: 44 CE Range
Technopolymer surface-mounting watertight junction boxes

The 44 CE junction boxes range consists of 3 families made of different technopolymers (two of which are Halogen Free) and available in 11 sizes with an ordinary or high-capacity base, high or low lids, blank or transparent lids, smooth walls or with quick-entry cable glands.

IP55

IK08

650 °C

85 °C

Technical Info

Information

Download

Software

Certificates

Insulation class II (according to IEC 61140 standards)

Colour Grey RAL 7035

IP degree IP55

Material Technopolymer GWPLAST 75

Mechanical resistance IK08

Internal dim. LxHxD (mm) 300x220x120

Entries No. holes / Ø 12 / 48

Lid screws (no. and type) 4 insul. sealable hinged

Application Ordinary junctions

Glow Wire Test 650 °C

Lid Plain screwed

Operating temperature -25 +60 °C

Type of material Halogen-free in compliance with EN 60754-2

Electrocod 02210

Thermo-pressure with ball 85 °C

Torque screws tightening 1.8 Newton/meter

Walls With cable glands

Accessories for insulation restoring GW44621, GW44622

Ware Number 85381000

Product Data Sheet

DXF drawing

BIM

Technical characteristics - DE

Technical characteristics - EN

Technical characteristics - IT

Technical characteristics - ES

Vai all'area download Vai all'area download

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

PRICE

Estimation of electrical systems

CADpro

Advanced design of electrical systems

Vai all’area software Vai all’area software

Reach Declaration

Display the certificate

CE marking

EQUIPMENT AND NOTES

ACCESSORIES SUPPLIED: GW44011 screwcaps for double insulation.
NOTES: to restore the double insulation and original IP degree of protection of the boxes, use the isolating screwcaps or the surface-mounting fixing brackets for boxes measuring at least 190x140mm.
CHARACTERISTICS:
quick entry cable glands, suitable for cables with Ø from 4 to 14mm.
For GW44007 and GW44008 quick entry cable glands suitable for conduits ø 16, 20, 25 and 32mm.
For GW44007, GW4408 quick entry cable glands suitable for conduits ø 16, 20, 25 and 32 mm.
For GW44009, GW44010, GW44011 quick entry cable glands suitable for conduits ø 16, 20, 25, 32 and 40mm.
