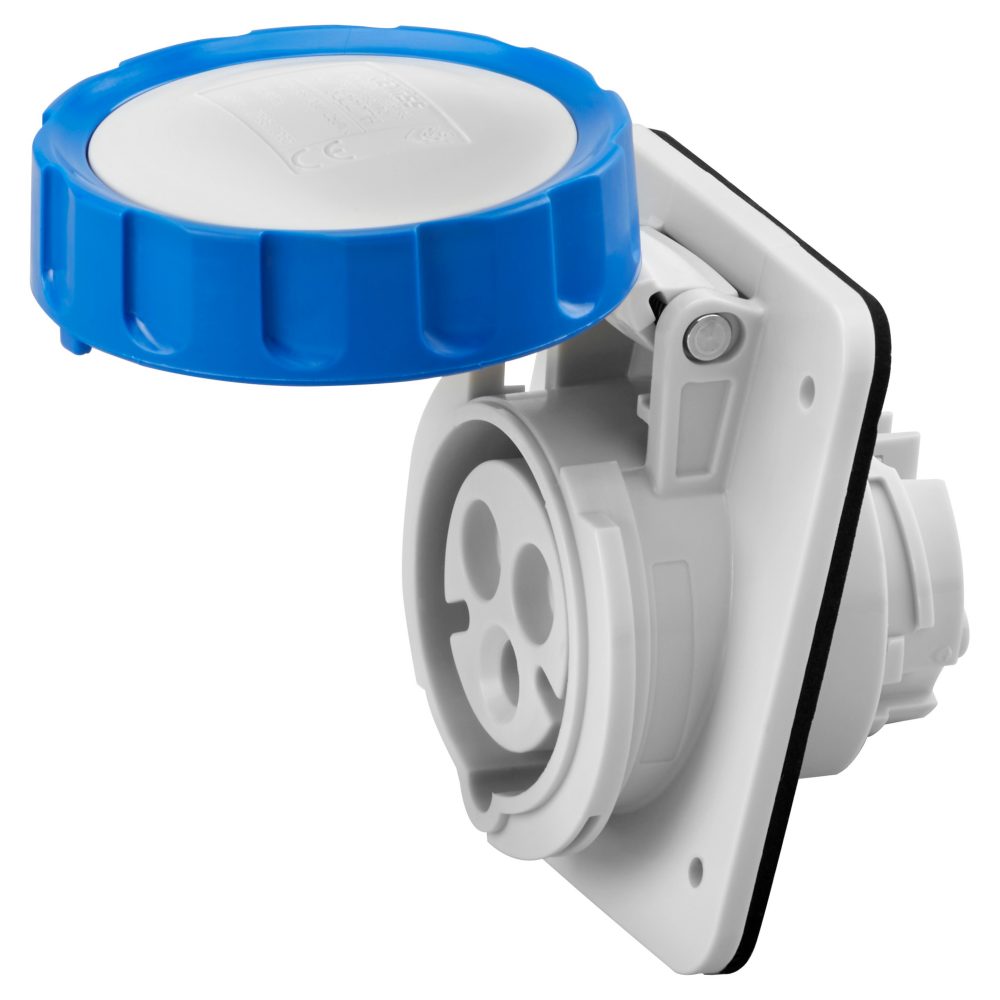

10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET HP - IP66/IP67 - 2P+E 16A 200-250V 50/60HZ - BLUE - 6H - SCREW WIRING

Code: GW62227H

Download Technical Sheet

Range: IEC 309 HP range
Plugs and socket-outlets IEC 309 Standard

The IEC 309 HP system comprises plugs and socket-outlets from 16 to 125 A in two different versions – straight mobile and 10° flush-mounting – which have IP44/IP54 and IP66/IP67/IP68/IP69 degrees of protection (IP68/IP69 only available for straight versions). The introduction of all the hours references for the earthing contact completes the range for specific applications and installations. The 16-32 A versions are available with screw wiring or fast wiring with spring terminals, while the 63-125A versions propose indirect wiring with mantle terminals.

IP66/IP67

IK09

850 °C (active parts) - 650 °C (passive parts)

125 °C (active parts) - 80 °C (passive parts)

Technical Info

Information

Download

Software

Video

Certificates

Colour Blue

Rated current (A) 16

IP degree IP66/IP67

No. of poles 2P+E

Mechanical resistance IK09

Reference h 6

Flange dimensions (mm) 85x75

Type 10° angled flush-mounting socket-outlet

Rated voltage 200 - 250 V

Frequency 50/60 Hz

Terminal tightening capacity 1-2.5mm² flexible cables - 1.5-4mm² rigid cables

Operating temperature -25 +55 °C

Type of wiring With screw

Type of material Halogen-free in compliance with EN 60754-2

Electrocod 2210

Glow wire test 850 °C (active parts) - 650 °C (passive parts)

Total number of operations > 5000

Permissible overload 22 A

Breaking capacity at 1.1 Un 20 A

Insulation resistance > 10 MΩ

Thermo-pressure with ball 125 °C (active parts) - 80 °C (passive parts)

Ware Number 85366990

Product Data Sheet

3D step drawing

BIM

Technical characteristics - IT

Technical characteristics - DE

Technical characteristics - EN

Technical characteristics - ES

Vai all'area download Vai all'area download

CADpro

Advanced design of electrical systems

Show more

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

ENERGYpro

Boards for building sites, campings-piers and distribution

Show more

PRICE

Estimation of electrical systems

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

Vai all’area software Vai all’area software

Reach Declaration

Display the certificate

CE marking

EQUIPMENT AND NOTES

NOTES: all products are packaged individually. Halogen free according to EN 60754-2
CHARACTERISTICS: nickel-plated contacts
