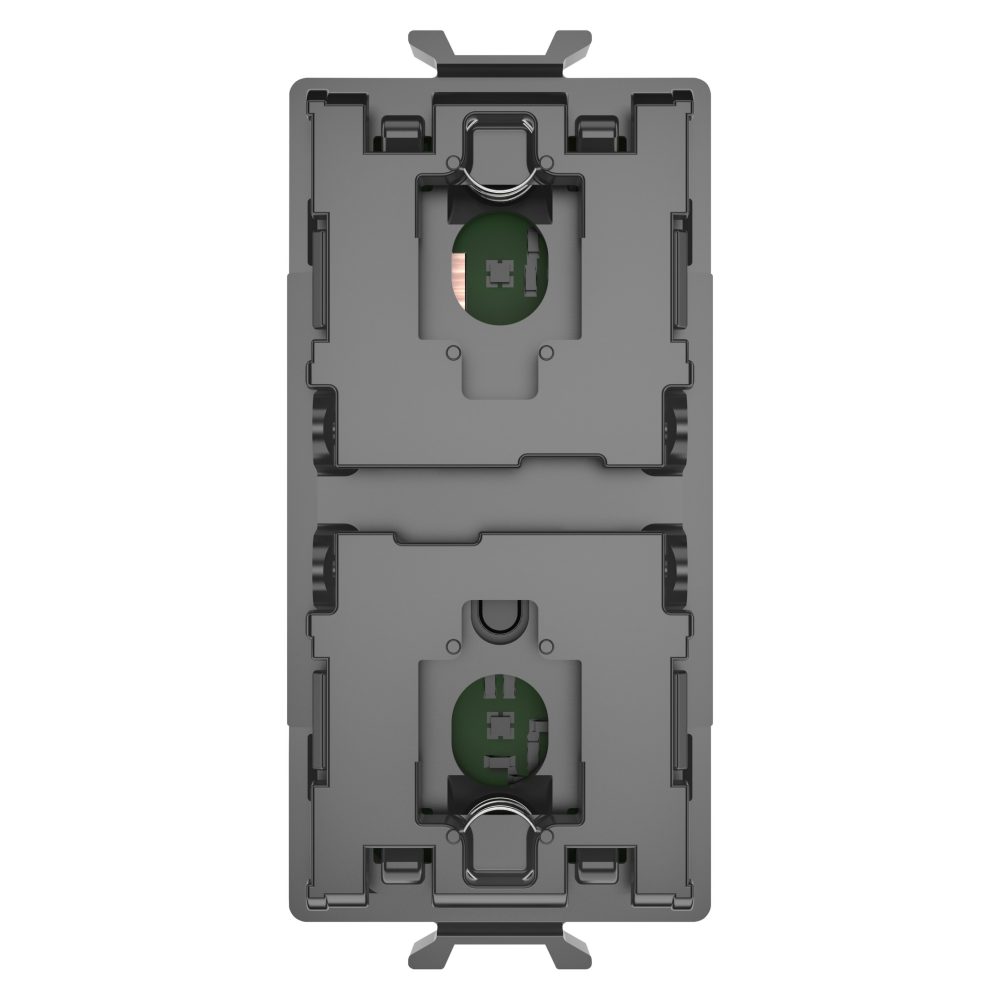

CONNECTED MODULE WITH 2 AXIAL COMMANDS - ZIGBEE - 100-240 V ac 50/60 Hz - 1 MODULE - CHORUSMART
Code:
GWA1241
Range: Connected SMART HOME
Connected Smart Home system
Connected Smart Home system
The connected system, based on the Zigbee wireless protocol, offers a full range of solutions for smart homes and small offices that are suitable for both new buildings and renovations.
It enables you to control safety, comfort and consumption, through a unique user experience, using the Home Gateway APP and EGO Smart plates. The system integrates with the Google Home IoT platforms, Amazon Alexa and IFTTT, and all functions can be controlled with Google and Alexa voice assistants.
It enables you to control safety, comfort and consumption, through a unique user experience, using the Home Gateway APP and EGO Smart plates. The system integrates with the Google Home IoT platforms, Amazon Alexa and IFTTT, and all functions can be controlled with Google and Alexa voice assistants.
IP20 (with button key)
Technical Info
Information
Download
Software
Video
Certificates
Power supply
100 ÷ 240 V ac - 50/60 Hz
No. of channels
2
No. modules
1
Radio connections
Zigbee (IEEE 802.15.4)
Standard
-
Working temperature
-5 ÷ +45 °C
Relative humidity (non-condensative)
Max 93%
Power output Zigbee
10 dBm
Wiring terminals
With screw
Terminal tightening capacity
stranded cables (mm²) Max. 1,5
stranded cables (mm²) Max. 1,5
Terminal tightening capacity
solid cables (mm²) Max. 1,5
solid cables (mm²) Max. 1,5
Category
2-channel push-button control panel
No. input channels
2 (for local command replication or sending additional Zigbee commands)
Input voltage
Mains supply voltage
IP degree
IP20 (with button key)
LED colour
Blue
Local control
Via 2 front push buttons (to complete with button key)
Power supply of EGO SMART plate
Yes
Zigbee control extension if installed in an EGO SMART plate (SHIFT function)
Yes (2 Zigbee command activated with front push buttons)
Ware Number
85389099
EQUIPMENT AND NOTES
CHARACTERISTICS: devices for the sending of 2 independent ZigBee commands via the operation of 2 local push buttons with axial activation.
Equipped with 2 inputs (auxiliary axial commads, traditional switches and push buttons, sensors etc.) for sending ZigBee commands and status.
The devices are equipped with two blue LEDs that can be configured to facilitate localisation at night or to display the status of the loads with on/off type controls and are designed to supply power to the EGO SMART plate within which they are housed.
APPLICATIONS: sending of 2 ZigBee commands (On/off and lamp dimming commands, roller shutter command, generic load command, scenarios). Using the inputs, it is possible to add ZigBee commands to other actuators (lamp on/off and dimming control, roller shutter and Venetian blind control, generic load control, scenarios) or send sensor status over the ZigBee network.
Using this device in combination with the EGO SMART plate, 2 further ZigBee commands can be sent, activated via the push buttons on the device when the SMART plate has the "SHIFT" function enabled.
NOTES: the devices must be completed with a front push button: GWA1241 must be completed with push buttons GW1x553S or GW1x557S; GWA1242 must be completed with push buttons GW1x554S or GW1x558S.
Equipped with 2 inputs (auxiliary axial commads, traditional switches and push buttons, sensors etc.) for sending ZigBee commands and status.
The devices are equipped with two blue LEDs that can be configured to facilitate localisation at night or to display the status of the loads with on/off type controls and are designed to supply power to the EGO SMART plate within which they are housed.
APPLICATIONS: sending of 2 ZigBee commands (On/off and lamp dimming commands, roller shutter command, generic load command, scenarios). Using the inputs, it is possible to add ZigBee commands to other actuators (lamp on/off and dimming control, roller shutter and Venetian blind control, generic load control, scenarios) or send sensor status over the ZigBee network.
Using this device in combination with the EGO SMART plate, 2 further ZigBee commands can be sent, activated via the push buttons on the device when the SMART plate has the "SHIFT" function enabled.
NOTES: the devices must be completed with a front push button: GWA1241 must be completed with push buttons GW1x553S or GW1x557S; GWA1242 must be completed with push buttons GW1x554S or GW1x558S.
