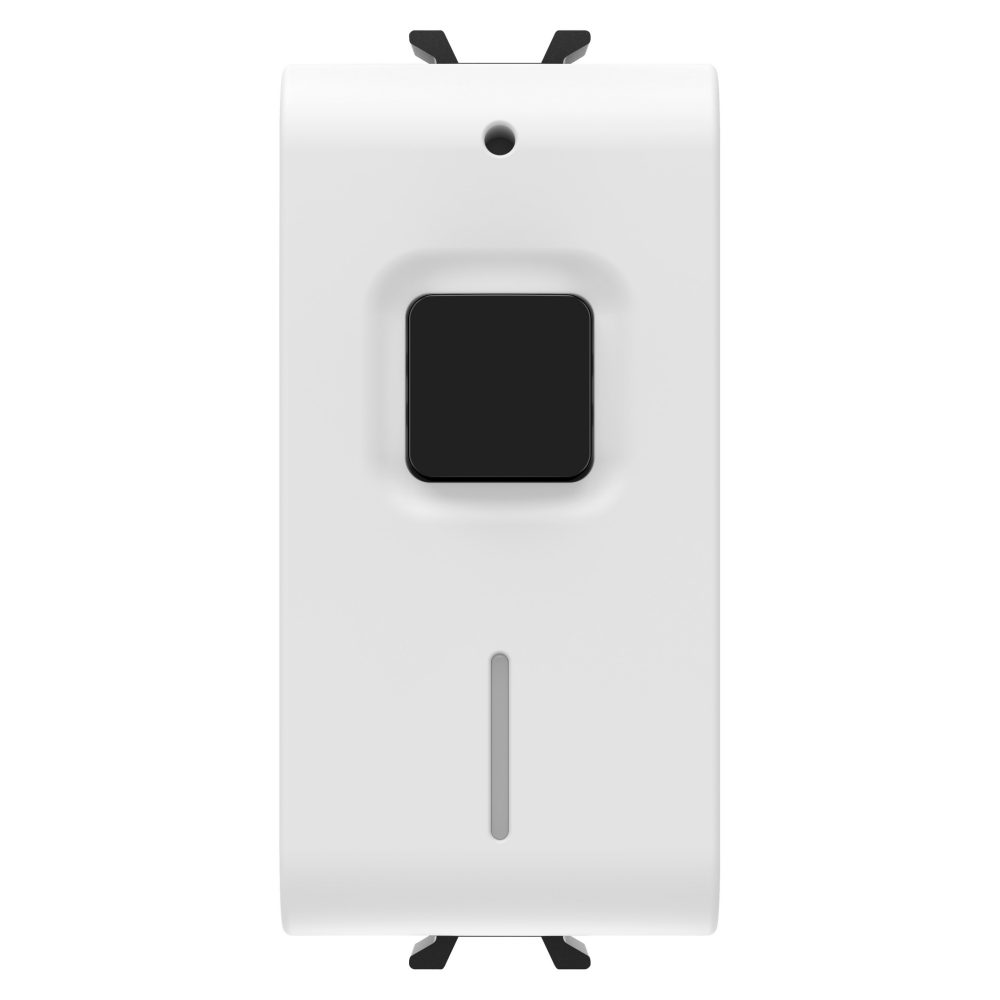

CONNECTED SWITCH ACTUATOR WITH ENERGY MEASUREMENT - 100-240 V ac 50/60 Hz - NO 16A (AC1) 240 V ac - 1 MODULO - SATIN WHITE - CHORUSMART
Code:
GW15826
Range: Connected SMART HOME
Connected Smart Home system
Connected Smart Home system
The connected system, based on the Zigbee wireless protocol, offers a full range of solutions for smart homes and small offices that are suitable for both new buildings and renovations.
It enables you to control safety, comfort and consumption, through a unique user experience, using the Home Gateway APP and EGO Smart plates. The system integrates with the Google Home IoT platforms, Amazon Alexa and IFTTT, and all functions can be controlled with Google and Alexa voice assistants.
It enables you to control safety, comfort and consumption, through a unique user experience, using the Home Gateway APP and EGO Smart plates. The system integrates with the Google Home IoT platforms, Amazon Alexa and IFTTT, and all functions can be controlled with Google and Alexa voice assistants.
IP20
Technical Info
Information
Download
Software
Video
Certificates
Colour
Satin White
Output contacts
1 NO 16 A (AC1) 240 V ac
Power supply
100 ÷ 240 V ac - 50/60 Hz
No. modules
1
No. output channels
1
Radio connections
Zigbee (IEEE 802.15.4)
Working temperature
-5 ÷ +45 °C
Relative humidity (non-condensative)
Max 93%
Power output Zigbee
10 dBm
Wiring terminals
With screw
Terminal tightening capacity
stranded cables (mm²) Max. 2,5
stranded cables (mm²) Max. 2,5
Terminal tightening capacity
solid cables (mm²) Max. 2,5
solid cables (mm²) Max. 2,5
Category
1-channel actuator with energy meter
No. input channels
1 (for local command replication or sending additional Zigbee commands)
Input voltage
Mains supply voltage
IP degree
IP20
240 V ac Incandescent-halogen lamps
1920 W
240 V ac LED lamps
200 W
Loads piloted from electronic transf. 240 V ac
500 VA
LED colour
Blue
Local control
Using front button
Power supply of EGO SMART plate
Yes
Zigbee control extension if installed in an EGO SMART plate (SHIFT function)
Yes (1 Zigbee command)
Measured sizes
Active power, energy consumed
Functions
Timed load control, measures consumption, disconnection of load after exceeding threshold.
Ware Number
85389099
EQUIPMENT AND NOTES
CHARACTERISTICS: 1-channel actuator for controlling loads with a live NO output contact and measurement of the power absorbed and the energy consumed (both measurements transmitted via Zigbee). Local push-button and blue LED for control and display of load status.
Controllable Loads: incandescent and halogen lamps (240Vac): 1920W, LED lamps (240Vac): 200W, fluorescent lamps (240Vac): 200W, halogen lamps powered by electronic transformers (240Vac): 500VA.
Equipped with 1 input (auxiliary axial controls, traditional push-buttons and switches, sensors, etc.) to replicate the local control of the load or to send Zigbee commands and statuses.
The devices are designed to supply power to the EGO SMART plate within which they are housed.
APPLICATIONS: On/off and timed control of the load connected to the devices by local push-button. The load can also be controlled via Zigbee from other devices connected to the network (control unit, scenarios). The input can be used to add control points for the connected local load to the devices, send ZigBee commands to other actuators (on/off command and lamp dimming, roller-shutter and Venetian blind control, control of generic loads, scenarios) or send sensor statuses over the ZigBee network.
Automatic load disconnection: the devices can be configured to disconnect the local load when a defined (power) consumption threshold is exceeded during configuration.
Using this device in combination with the EGO SMART plate, 1 further ZigBee command can be sent, activated via the push button on the device when the SMART plate has the “SHIFT” function enabled.
Controllable Loads: incandescent and halogen lamps (240Vac): 1920W, LED lamps (240Vac): 200W, fluorescent lamps (240Vac): 200W, halogen lamps powered by electronic transformers (240Vac): 500VA.
Equipped with 1 input (auxiliary axial controls, traditional push-buttons and switches, sensors, etc.) to replicate the local control of the load or to send Zigbee commands and statuses.
The devices are designed to supply power to the EGO SMART plate within which they are housed.
APPLICATIONS: On/off and timed control of the load connected to the devices by local push-button. The load can also be controlled via Zigbee from other devices connected to the network (control unit, scenarios). The input can be used to add control points for the connected local load to the devices, send ZigBee commands to other actuators (on/off command and lamp dimming, roller-shutter and Venetian blind control, control of generic loads, scenarios) or send sensor statuses over the ZigBee network.
Automatic load disconnection: the devices can be configured to disconnect the local load when a defined (power) consumption threshold is exceeded during configuration.
Using this device in combination with the EGO SMART plate, 1 further ZigBee command can be sent, activated via the push button on the device when the SMART plate has the “SHIFT” function enabled.
